Standards: EN 12390-4, EN ISO 6892, 7500-1, ASTM E4

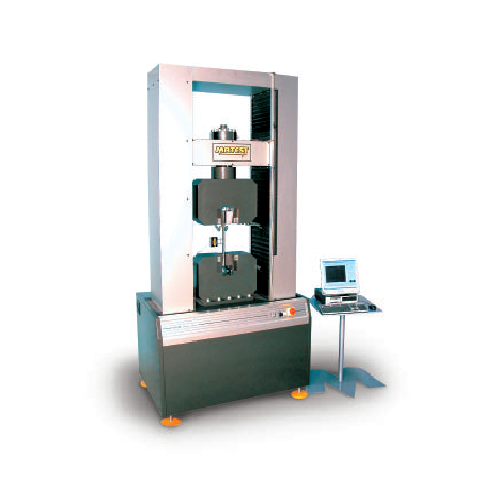

The machine is suitable to make tensile ad elongation tests in Laboratories for Quality Control and research on different materials, such as Metals, Plastics, Composed Materials, Wires, Ropes, Paper, Textiles etc.
For each testing purpose, suitable machine range, seizing grips and accessories must be selected.
-Strong base containing the transmission components and the Hardware control instruments.
-Two big diameter and high resistance steel columns with ground hard chrome surfacing granting a high lateral rigidity.
-Possibility to execute tests in both directions.
-Two re-circulating spheres screws with pre-loaded female screws that grant no clearance to the crossbar movement.
-Big section cross-bar granting high stiffness (UNI ISO 5893 Standards)
-Sintered bushes with low friction coefficient crossbar movement.
The Load Cell is made in stainless steel and reads both tensile and compression loads with a very high precision.
In order to follow the specific needs of each single application, different load cells with different capacities within the nominal capacity of the machine can be installed on the frame.
Different connections for the installation of the seizing devices are on the mobile cross-bar and on the base.
The machine is delivered with different safety devices limiting the maximum travel of the cross-bar. There is also an adjustable device that allows setting a personalized upper and lower travel limit following the used appliances.
Technical Specifications
Accuracy class: 1
Repeatability error: ≤± 0.145%
Interpolation error: ≤± 0.090%
Error on zero: ≤± 0.03% F.S.
Reversibility error: ≤± 0.240%
Linearity error: ≤±0.005% F.S.
Hysteresis: ≤±0.05% F.S.
Maximum overload capacity: 150%
Load Capacity kN: 600 kN
Test Speed (mm/min): Min: 0.01 Max: 300
Positioning Speed (mm/min): 250
Cross Bar Travel (*) mm: 1500
Opening of the Testing Chamber: Vertical mm (**): 1510 Horizontal mm: 713
Maximum Distance Between the Tensile Heads mm (***): 550
Dimensions mm: height: 3000 width: 1465 depth: 930 Weight: 2600 kg
Power Supply: 400Vx3phx50Hz
Absorbed Power W: 3000
Firmware
- Electronic control unit “Cyber-plus Evolution” with Touch-Screen colour display, that runs like a standard PC based on Windows operating system for the management and analysis of the data, test results, graphs.
- The Touch-Screen icon interface allows an easy set up of the parameters and immediate execution of the test.
- The machine can be connected to a PC for remote test execution through suitable Software; the machine can in any case perform the tests without any external PC, because of the “Cyber-Plus” grants performances like a PC.
- Direct connection to Intranet (connection to a LAN network) and Internet to establish a remote communication and receive an immediate diagnostic analysis from Matest technicians, or for uptdates of the software.
- Unlimited memory storage with: 2 USB ports, 1 SD card slot, RS232/485 serial port.
- Possibility to select different languages.
The frames protecting the columns and the screws are made of painted steel sheets, the internal sides are closed with anti-dust bellows and all the outside and internal parts are properly treated against the corrosion.
Following equipments are not delivered with the machine and have consequently to be ordered separately:
- Personal computer model H009-01
- Standard UTM 2 software model H009N
- Special personalised programs (following the customer demand).
- Accessories for the seizing of the specimens.
- Printer model C128
- Extensometers model H014 to H014-10
- Other accessories
Working Conditions:
- The voltage must not have peaks of tension, over-tensions and transitory over-currents or drops of voltage higher than 10% of the nominal voltage.
- Working temperature from +5 °C up to +45 °C.
- Humidity range from +10% up to +90%, without condensation.
