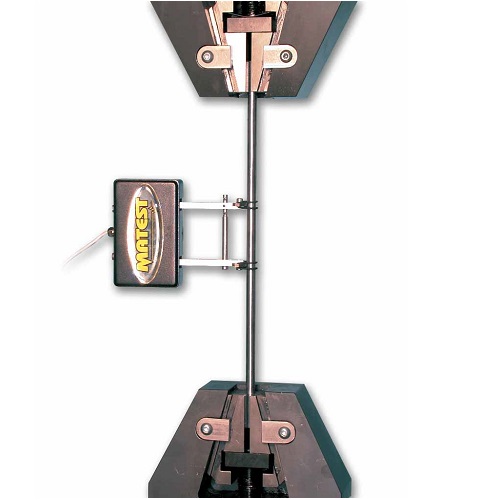

Electronic Extensometer

Measuring base 50 mm, Deformation range +1 mm / -0.2 mm
Maximum percent measurable deformation: +2%
It gives the possibility to take the longitudinal deformations of the specimen during the tensile test.
A graph load/deformation is obtained and from this graph the coefficient of elasticity together with the loads RP0.1 - RP0.2 - Rt1 can be identified even on materials that are not presenting a yield point that can be clearly identified.
The appliance is delivered complete with connection cables.

Electronic Extensometer for Tensile Deformation Strength Tests Until Breakage
Model
H014-06 Extensometer for round specimens from 4.5 to 11 mm diameter. Transducer stroke: 25 mm
H014-07 Extensometer for round specimens from 10 to 19 mm diameter. Transducer stroke: 50 mm
H014-08 Extensometer for round specimens from 18 to 25 mm diameter. Transducer stroke: 50 mm
H014-09 Extensometer for round specimens from 26 to 36 mm diameter. Transducer stroke: 50 mm
H014-10 Extensometer for flat specimens, width max. 25 mm; thickness max. 10 mm. Transducer stroke: 50 mm
Measuring base: 25 – 50 – 60 – 70 mm
H014-11 Extensometer for round specimens from 35 to 49 mm diameter. Transducer stroke: 50 mm
H014-12 Extensometer for round specimens from 48 to 61 mm diameter. Transducer stroke: 50 mm

H003-18
Wire Strands Extensometer
Standard: UNI 7676
The instrument is directly applied on the sample through two coaxial telescopic hardened tubes by measuring the deformation/elongation of the strand up to failure.
Supplied complete with electronic precision transducer 50 mm stroke by 0,005 mm sensitivity.
Measuring base: 600 mm
The H003-18 extensometer can be utilized only with the machine model H001BS.
Dimensions: 105 x 630 mm
Weight: 1000 g
