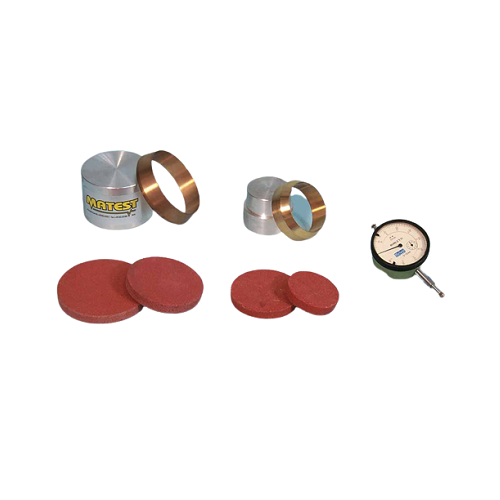

Consolidation Cell- Fixed Ring
Made from brass, with specimen holding fixed ring having cutting rim so as to be utilized also to sample undisturbed specimens.
Accurately manufactured these cells are supplied complete with loading piston, couple of porous stones and plexiglass transparent water jacket.
| Model |
Specimen diameter mm |
Specimen area cm2 |
Specimen thickness mm |
Spare cutting ring mm |
Specimen tamper |
Spare couple of porous stones |
| S268 |
50.47 |
20 |
20 |
S122 |
S123 |
S274 KIT |
| S268-05 |
63.5 |
31.67 |
20 |
S122-19 |
S123-05 |
S274-10 KIT |
| S268-01 |
71.40 |
40 |
20 |
S122-01 |
S123-01 |
S274-01 KIT |
| S268-04 |
75.00 |
44.16 |
20 |
S122-17 |
S123-04 |
S274-09 KIT |
| S268-02 |
79.80 |
50 |
20 |
S122-02 |
S123-02 |
S274-02 KIT |
| S268-03* |
112.80 |
100 |
25 |
S122-03 |
S123-03 |
S274-03 KIT |
* The consolidation cell Ø 112.8 mm is made from aluminium.
Consolidation Cell- Permeability Attachment
Made from brass, similar in manufacture to the fixed ring cells, they are also provided of a pipe connector with cock and graduated glass
burette 10 ml capacity allowing to perform permeability tests.
| Model |
Specimen diameter mm |
Specimen area cm2 |
Specimen thickness mm |
Hollow punch |
Specimen tamper |
Spare couple of porous stones |
| S272 |
50.47 |
20 |
20 |
S122-04 |
S123 |
S274-04 KIT |
| S272-05 |
63.5 |
31.67 |
20 |
S122-20 |
S123-05 |
S274-11 KIT |
| S272-01 |
71.40 |
40 |
20 |
S122-05 |
S123-01 |
S274-05 KIT |
| S272-04 |
75.00 |
44.16 |
20 |
S122-18 |
S123-04 |
S274-08 KIT |
| S272-02 |
79.80 |
50 |
20 |
S122-06 |
S123-02 |
S274-06 KIT |
| S272-03* |
112.80 |
100 |
25 |
S122-07 |
S123-03 |
S274-07 KIT |
* The consolidation cell Ø 112.8 mm is made from aluminium.
S275 Permeability Attachment
Complete with stand, clamps and hose it is connected to the cells mod. S272 to S272-05.
Recommended for soil samples having great value of permeability.
Burette has 50 ml capacity and subdiv. 0.1 ml.
Weight: 5 kg approx.
