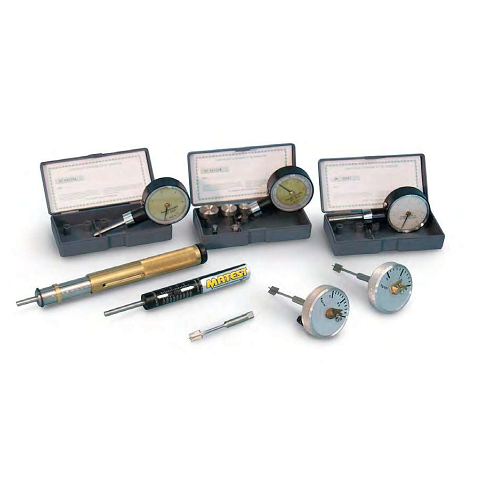

Designed for the rapid determination in the field or in the laboratory of shear strength of cohesive soils.
2 models are available:
S075 Pocket Shear Vane Device
Measuring range: 0-1 kg/cm2
The dial directly displays the cutting force in kg/cm2.
Complete with interchangable stainless steel vanes, 10x20 mm (Ø x height)
Weight: 300 gr.
S076 Pocket Shear Vane Device
Measuring range: 0-2 kg/cm2
The dial directly displays the cutting force in kg/cm2.
Complete with interchangable stainless steel vanes, 10x20 mm (Ø x height)
Weight: 300 gr.
