Digital Plate Bearing Test Equipment 500 kN Capacity
3 Linear Displacement Transducers and Cyber-Plus Data Acquisition System
Standards: CNR N.146, metod “B”, BS 1377:9, ve yükleme plakası (aksesuarı) kullanılarak çap 450, 600, 760 mm, aynı zamanda ASTM D1195, D1196, CNR N.92 standartlarını karşılar.
Consisting of:
S227-02 Hydraulic jack 500 kN capacity, complete with hand pump, spherical seat, rubber pipe with fast connector, set of extension rods of different lengths, carrying case.
C116-09S Pressure transducer, connected to the pump.
C405-15N Cyber-Plus 8 Evolution “Touch Screen” for data acquisition, visualization, processing and storing, directly connected to PC or printer.
S224-21N Software for test data processing
S226-05 Load plate Ø 300 mm
S226-06 Intermediate plate Ø 160 mm

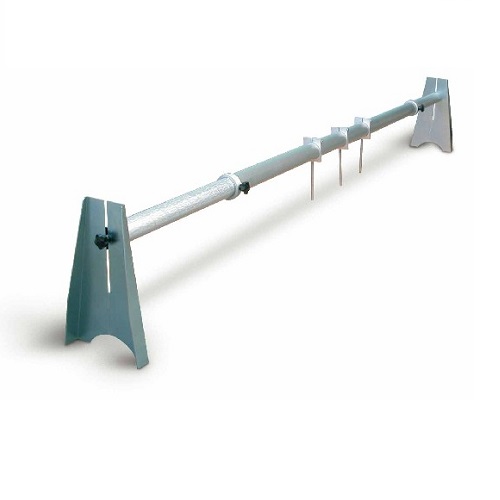

S222-03 Datum bar assembly, 2.5 m long, telescopic, aluminium made, adjustable in height, complete with base supports, plumb and spirit level. Packed separayely. (Alternative solution: S223-03 “Y” measuring system, Swiss method).
S336-14 n° 3 linear displacement transducers, 50 mm travel.
S336-31 n° 3 Extension cables for transducer, 5 m long.
S226-16 n° 3 articulated transducer supports with adjustment device.
S335-15 n° 3 universal coupling pliers for transducers.
Weight: 110 kg approx.
Accessories:
S226-01 Loading Plate Ø 450 mm
S226-02 Loading Plate Ø 600 mm
S226-03 Loading Plate Ø 760 mm
S226-09 Set of Telestopic Extension Rods, aluminium made, to be connected to the datum bar mod. S222-03 (2.5 m long) to obtain a max. adjustable lenght of 5.5 m as requsted by ASTM, CNR Specifications
S223-03

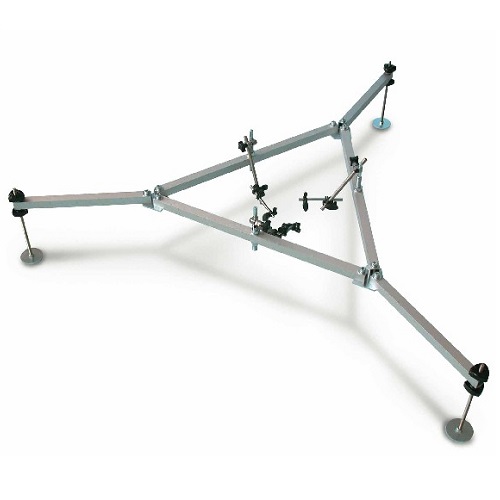

“Y” Measuring System - Swiss Method
Standard: SNV 70312
Aluminium alloy made, lightweight and very easy to use, it may be used as alternative solution to the datum bar assembly mod. S222-03.
This system is applicable to the plate bearing equipment with 3 dial gauge or 3 displacement transducers.
Weight: kg 7 approx.
S226-50
Official Accredia Calibration Certficate
(equivalent UKAS, ENAC, DAKKS, SAS, COFRAC etc.) of the applied load for the Bearing Test Equipment from mod. S222KIT to mod. S226KIT (p. 514 to 518) and for Field CBR/Unconfined test equipment mod. S131KIT, S210KIT, S220KIT.
The calibration is carried out only at Matest factory.

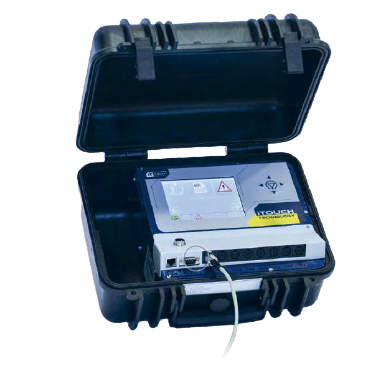

C405-15N
Cyber-Plus Touch Screen
Data Acquisition and Processing System
8 Channels acquisition and processing data system, 24 bit resolution.
Electronic advanced technology, colour touch screen 1/4 VGA, high graphic performances, the unit automatically performs test and data processing. A certificate can be printed through a printer
(optional) directly connected to the unit through the USB port
The Cyber-Plus is equipped with slots for external pendrive or SD card infinite memory supports, it can be directly connected to a PC.
Contained in a practical and sturdy watertight carrying case, can be powered from an electrical network 90-270 V or use the internal battery and charger granting one full day on-site use.
