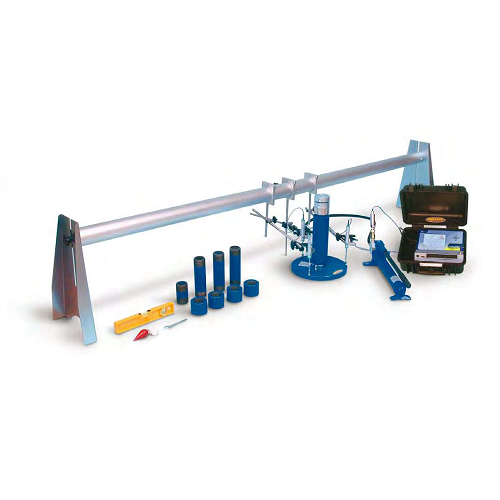

S224-KIT
Digital Plate Bearing Test Equipment 100 kN Capacity
3 Linear Displacement Transducers and Cyber-Plus Data Acquisition System
Standards: CNR N.146, method “B”, BS 1377:9
This test is performed for the determination of the bearing capacity of a soil in-situ on road constructions, foundations, road subgrades, airport and highway pavements.
A wide range of plate bearing test equipment is available, together with many accessories according to the different Standards and specific end-user needs.
The hand pumps 100 kN and 200 kN capacity are “Enerpac Made” and all models have double speed, ensuring fast approach.Consisting of:
S222-01 Hydraulic jack 100 kN capacity, complete with hand pump, rubber pipe with fast connector, set of extension rods of different
lengths, carrying case.
S226-13 Upper spherical seat.
C116-09S Pressure transducer, connected to the pump.
C405-15N Cyber-Plus Evolution “Touch Screen” for data acquisition, visualization, processing and storing, directly connected to PC or printer.
Technical details: see p. 520
S224-21N Software for test data processing.
S226-05 Load plate Ø 300 mm
S226-06 Intermediate plate Ø 160 mm
S222-03 Datum bar assembly, 2.5 m long, telescopic, aluminium made, adjustable in height, complete with base supports, plumb and spirit level. Packed separayely. (Alternative solutions: S223-03 “Y” measuring system, Swiss method. See p. 519).
S336-14 n° 3 linear displacement transducers, 50 mm travel.
S336-31 n° 3 Extension cables for transducer, 5 m long.
S226-16 n° 3 articulated transducer supports with adjustment device.
S335-15 n° 3 universal coupling pliers for transducers.
Weight: 60 kg approx.
S224-01-KIT
Digital Plate Bearing Test Equipment 200 kN Capacity
3 Linear Displacement Transducers and Cyber-Plus Data Acquisition System
Standards: CNR N° 146, method “B”, BS 1377:9, and using loading plates (accessory) Ø 450, 600, 760 mm, it meets also: ASTM D1195, D1196, CNR N. 92
Consisting of:
S225-01 Hydraulic jack 200 kN capacity, complete with hand pump, rubber pipe with fast connector, set of extension rods of different lengths, carrying case.
S226-13 Upper spherical seat.
C116-09S Pressure transducer, connected to the pump.
C405-15N Cyber-Plus Evolution “Touch Screen” for data acquisition, visualization, processing and storing, directly connected to PC or printer.
S224-21N Software for test data processing.
S226-05 Load plate Ø 300 mm
S226-06 Intermediate plate Ø 160 mm
S222-03 Datum bar assembly, 2.5 m long, telescopic, aluminium made, adjustable in height, complete with base supports, plumb and spirit
level. Packed separayely. (Alternative solutions: S223-03 “Y” measuring system, Swiss method.).
S336-14 n° 3 linear displacement transducers, 50 mm travel.
S336-31 n° 3 Extension cables for transducer, 5 m long.
S226-16 n° 3 articulated transducer supports with adjustment device.
S335-15 n° 3 universal coupling pliers for transducers.
Weight: 70 kg approx.
