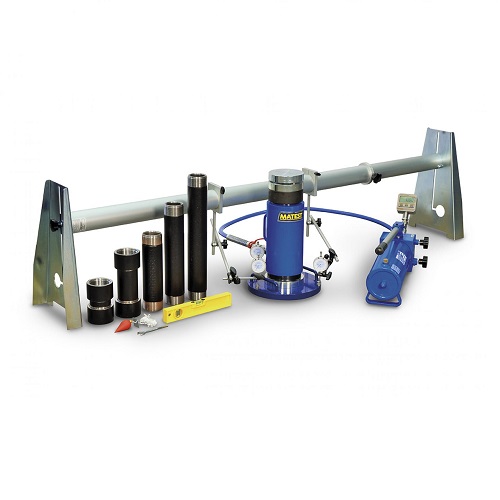

S226-KIT
Plate Bearing Test Equipment 500 kN Capacity -3 Dial Gauges Model
Analogue Measuring System with Dial Manometer
Standards: CNR N° 146, method “B”, BS 1377:9, and using loading plates (accessory) Ø 450, 600, 760 mm, it meets also: ASTM D1195, D1196, CNR N. 92
This test is performed for the determination of the bearing capacity of a soil in-situ on road constructions, foundations, road subgrades, airport and highway pavements.
A wide range of plate bearing test equipment is available, together with many accessories according to the different Standards and specific end-user needs.
The hand pumps 100 kN and 200 kN capacity are “Enerpac Made” and all models have double speed, ensuring fast approach.
Consisting of:
S227-02 Hydraulic jack 500 kN capacity, complete with hand pump, spherical seat, rubber pipe with fast connector, set of extension rods of different lengths, carrying case.
S227-03 Analogue pressure gauge 0-500 kN, div. 2 kN.
S226-05 Load plate Ø 300 mm
S226-06 Intermediate plate Ø 160 mm
S222-03 Datum bar assembly, 2.5 m long, telescopic, aluminium made, adjustable in height, complete with base supports, plumb and spirit level. Packed separayely. (Alternative solutions: S223-03 “Y” measuring system, Swiss method.).
S377 n° 3 dial gauges 25x0.01 mm
S226-16 n° 3 articulated dial gauge supports with adjustment device.
Weight: 110 kg approx.
S226D-KIT
Plate Bearing Test Equipment 500 kN Capacity -3 Dial Gauges Model
Digital Measuring System with Digital Manometer
Standards: CNR N° 146, method “B”, BS 1377:9, and using loading plates (accessory) Ø 450, 600, 760 mm, it meets also: ASTM D1195, D1196, CNR N. 92
S227-03D Digital pressure manometer 0 - 500 kN with 20N resolution, instead of the analogue gauge S227-03
