S225-KIT
Plate Bearing Test Equipment 200 kN Capacity - 3 Dial Gauges Model
Analogue Measuring System With Dial Manometer
Standards: CNR N° 146, method “B”, BS 1377:9, and using loading plates (accessory) dia. 450, 600, 760 mm, it meets also: ASTM D1195, D1196, CNR N. 92
This test is performed for the determination of the bearing capacity of a soil in-situ on road constructions, foundations, road subgrades, airport and highway pavements.
A wide range of plate bearing test equipment is available, together with many accessories according to the different Standards and specific end-user needs.
The hand pumps 100 kN and 200 kN capacity are “Enerpac Made” and all models have double speed, ensuring fast approach.
Consisting of:
S225-01 Hydraulic jack 200 kN capacity, complete with hand pump, rubber pipe with fast connector, set of extension rods of different lengths, carrying case.
S225-02 Analogue pressure gauge 0-200 kN, div. 1 kN.
S226-13 Upper spherical seat.
S226-05 Load plate Ø 300 mm
S226-06 Intermediate plate Ø 160 mm
S222-03 Datum bar assembly, 2.5 m long, telescopic, aluminium made, adjustable in height, complete with base supports, plumb and spirit level. Packed separayely. (Alternative solutions: S223-03 “Y” measuring system, Swiss method. See p. 519).
S377 n° 3 dial gauges 25x0.01 mm
S226-16 n° 3 articulated dial gauge supports with adjustment device.
Weight: 70 kg approx.
S225D-KIT
Plate Bearing Test Equipment 200 kN Capacity - 3 Dial Gauges Model
Digital Measuring System With Digital Manometer
Same composition of S225KIT except:

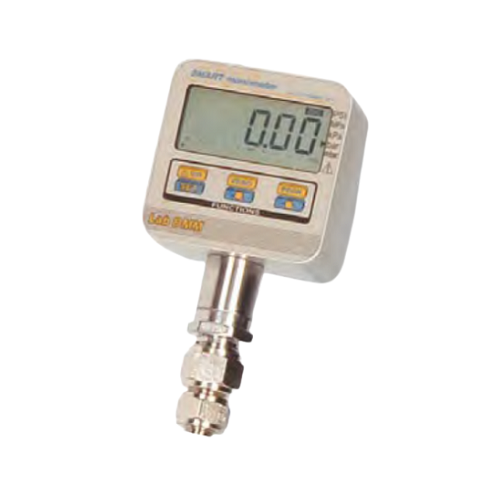

S225-02D Digital pressure manometer 0 - 200 kN with 10N resolution, instead of the analogue gauge S225-02.
Accessory for S225-KIT:
S223-02 Pressure Gauge
Range 0 - 50 kN, div. 0.25 kN with large dial Ø 200 mm, complete with fast connector, used for accurate readings at low loads, as for ex. pre-load of 0.5 kg/cmq.
B103-10

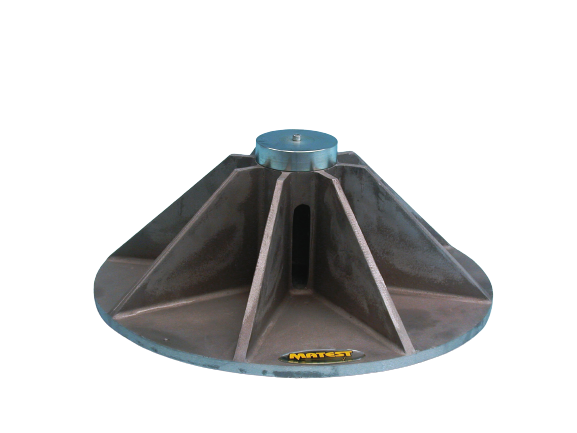

Bearing Plate 600 mm Cast Aluminium
Standard: NF P94-117-1
Used to determine the static deformation of flexible road pavement and with the plate bearing equipment.
Supplied complete with coupling device to the hydraulic jack.
Weight: 25 kg yaklaşık
Accessory:
B102 Benkelman Beam Apparatus according to Standards: ASTM D4965-03, NF P98-200-2, AASHTO T256
