S223-KIT
Plate Bearing Test Equipment 100 kN Capacity- 3 Dial Gauges Model
Analogue Measuring System with Dial Manometer
Standards: CNR N.146 method “B”, BS 1377:9
This test is performed for the determination of the bearing capacity of a soil in-situ on road constructions, foundations, road subgrades, airport and highway pavements.
A wide range of plate bearing test equipment is available, together with many accessories according to the different Standards and specific end-user needs.
The hand pumps 100 kN and 200 kN capacity are “Enerpac Made” and all models have double speed, ensuring fast approach.

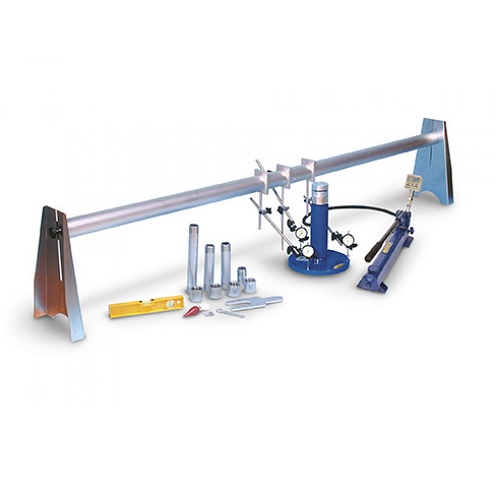

Consisting of:
S222-01 Hydraulic jack 100 kN capacity, complete with hand pump, rubber pipe with fast connector, set of extension rods of different lengths, carrying case.
S222-02 Analogue pressure gauge 0-100 kN, div. 0.5 kN.
S226-13 Upper spherical seat.
S226-05 Load plate Ø 300 mm
S226-06 Intermediate plate Ø 160 mm
S222-03 Datum bar assembly, 2.5 m long, telescopic, aluminium made, adjustable in height, complete with base supports, plumb and spirit level. Packed separayely. (Alternative solutions: S223-03 “Y” measuring system, Swiss method.).
S377 n° 3 dial gauges 25x0.01 mm
S226-16 n° 3 articulated dial gauge supports with adjustment device.
Weight: 60 kg approx.
S223D-KIT
Plate Bearing Test Equipment 100 kN Capacity- 3 Dial Gauges Model
Digital Measuring System with Digital Manometer
Same composition of S223KIT except:
S222-02D Digital pressure manometer 0 - 100 kN with 10N resolution, instead of the analogue gauge S222-02.
