Standards: ASTM D1194, D1195, D1196, BS 1377:9, CNR N.92 and 146, UNE 7391 Comparable to DIN 18134
This test is performed for the determination of the bearing capacity of a soil in-situ on road constructions, foundations, road subgrades, airport and highway pavements.
A wide range of plate bearing test equipment is available, together with many accessories according to the different Standards and specific end-user needs.
The hand pumps 100 kN and 200 kN capacity are “Enerpac Made” and all models have double speed, ensuring fast approach.
Models:
S222-KIT
Plate Bearing Test Equipment 100 kN Capacity- 1 Dial Gauge Model
Analogue Measuring System with Dial Manometer
Standard: CNR N.146, method “A”
Consisting of:
S222-01 Hydraulic jack 100 kN capacity, complete with hand pump, rubber pipe with fast connector, set of extension rods of different lengths, carrying case.
S222-02 Analogue pressure gauge 0-100 kN, div. 0.5 kN
S226-05 Load plate Ø 300 mm
S226-12 Device for centre dial gauge measure, with spherical seat.
S222-03 Datum bar assembly, 2.5 m long, telescopic, aluminium made, adjustable in height, complete with base supports, plumb and spirit level. Packed separayely.
S377 Dial gauge 25x0.01 mm
S226-16 Articulated dial gauge support with adjustment device.
Weight: 60 kg approx.

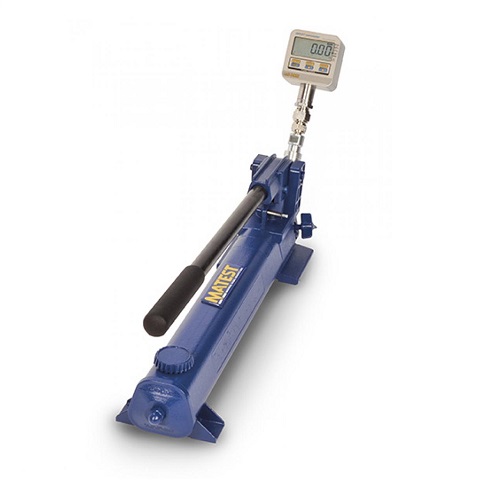

S222D-KIT
Plate Bearing Test Equipment 100 kN Capacity- 1 Digital Gauge Model
Digital Measuring System with Digital Manometer
Same composition of S222KIT except:
S222-02D Digital pressure manometer 0 - 100 kN with 10N resolution, instead of the analogue gauge S222-02.

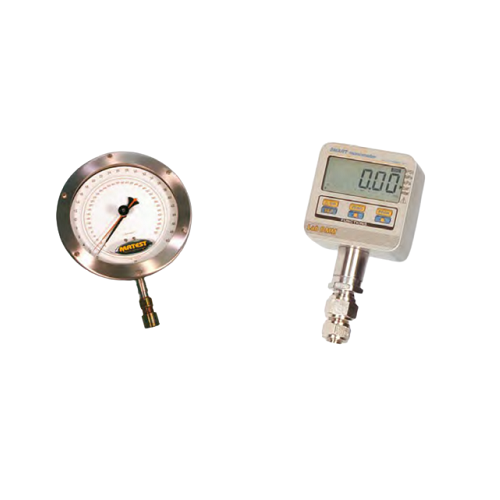

S222-02D and S225-02D
Digital Pressure Manometer
The applied load is measured by a high precision electric load cell with digital display, granting accurate readings also at low loads.
- 65.000 divisions
- 10N resolution
- linearity: 0.05%
- hysteresis: 0.03%
- repeatability: 0.02%
- display: LCD with high visibility
- display height: 16 mm
- battery operated, 12 months life
Accessory for S222 KIT and S223 KIT:
S223-01 PRESSURE GAUGE, range 0 - 50 kN, div. 0.25 kN with large dial Ø 200 mm, complete with fast connector, used for accurate readings at low loads, as for ex. pre-load of 0.5 kg/cmq.
