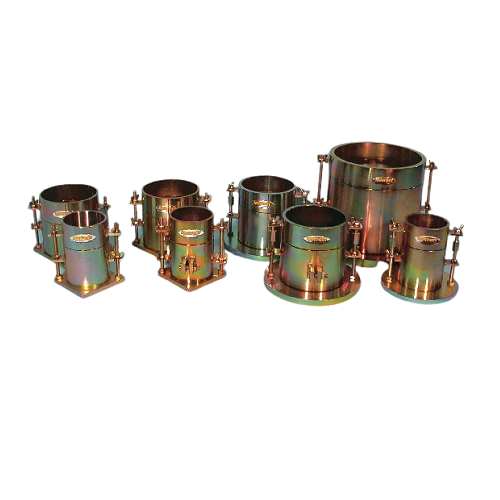

Proctor moulds (standard or modified) are used for determining the relationship between the moisture content and density of compacted soils.
Steel made, complete with mould body, collar and base; plated against corrosion.
Different proctor mould models are available according to the various international Standards in use.
| Model |
Description |
Standards* |
Diameter mm |
Height mm |
Volume ml |
Weight kg |
| S185 |
Standard Proctor Mould |
ASTM, AASHTO, NF, CNR |
101.6 |
116,4 |
944 |
4,5 |
| S191 |
Standard Proctor Mould |
BS |
105 |
115,5 |
1000 |
5 |
| S194 |
Standard Proctor Mould |
EN 13286:2 comparable to DIN |
100 ± 1 |
120 ± 1 |
942 |
9 |
| S186 |
Modified Proctor Mould |
ASTM, AASHTO, NF, CNR |
152,4 |
116,4 |
2124 |
10 |
| S190-01 |
Modified Proctor Mould |
NF |
152 |
152 |
2758 |
10 |
| S194-01 |
Modified Proctor Mould |
EN 13286:2 comparable to DIN |
150 ± 1 |
120 ± 1 |
2120 |
13 |
* Standards: EN 13286-2, ASTM D558, ASTM D698, ASTM D1557, AASHTO T99, AASHTO T134, AASHTO T180, BS 1377:4, BS 1924:2, CNR N° 69, NF P94-078, NF P94-093, NF P98-231-1, DIN 18127
