Used to evaluate the relationship between the moisture percentage of a soil sample and the number of blows required to close a groove made into the soil and therefore to determine when a clay soil

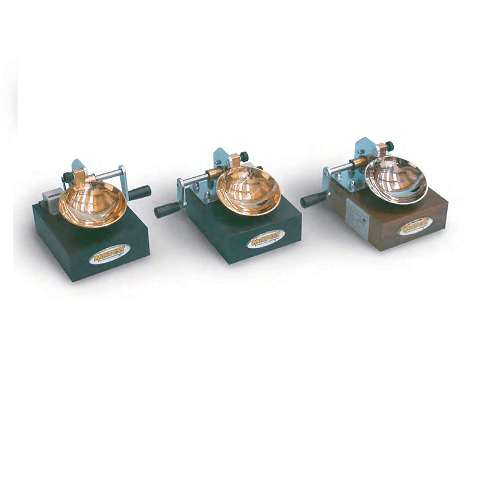

changes from a plastic to a liquid state. The unit comprises a removable brass cup which through a cam device drops on a bakelite base (or hard rubber base). Supplied complete with drops counter, but without grooving tool which has to be ordered separately.
The instrument is available in two versions:
- hand operated through crank (left or right side)
- motor operated at 120 drops/min speed, ensuring better uniformity and accuracy
Accessories
S173-02 Rough Brass Cup, with central smooth band 10 mm wide, as requested by NF P94-051 Standard, used for soils having low plasticity
S173-03 Grooving Tool, to UNI 10014 - AASHTO T89 Spec.
S173-04 Grooving Tool, to ASTM D 4318 Specifications
S173-05 Grooving Tool, to NF P94-051-1 Specifications
S173-06 Grooving Tool, to BS 1377:2 Specification
