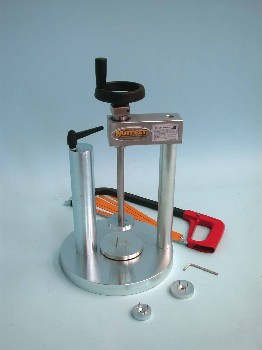

Designed to reduce by trimming the diameter of a soil sample unitil reaching the desired diameter size by using a wire saw. It is also used for rectifying the height and diameter of the sample.
The lathe is hand-operated, the height is adjustable up to 230 mm, and it accepts samples from Ø 38 to 110 mm.
Supplied complete with three sets of platens for samples Ø 38-50,47-60 mm, wire saw and 6 blades.
Dimensions: Ø 460x720 mm
Weight: 20 kg approx.
Accessory
S120-01 UPPER TRIMMING PLATEN available from Ø 38 to 110 mm
When ordering please specify required diameter.
