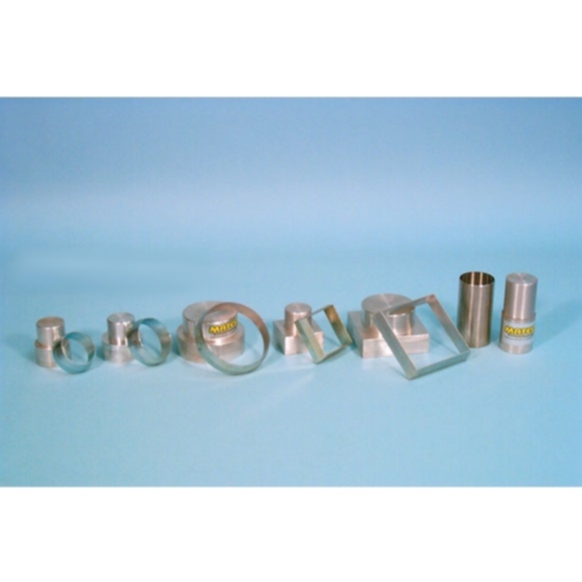

Used to prepare soil samples and to fit them into the relevant cells to perform triaxial, consolidation, shear, unconfined tests.
The punch has thin walls with cutting rim, and the tamper expels the specimen from the hollow punch by inserting it directly into the cell without disturbing the same.
| Cell |
Dimensions |
Height |
Hollow Punch |
Tamper |
| Consolidation |
Ø 50.47 |
20 mm |
S122 |
S123 |
| Consolidation |
Ø 63.50 |
20 mm |
S122-19 |
S123-05 |
| Consolidation |
Ø 71.40 |
20 mm |
S122-01 |
S123-01 |
| Consolidation |
Ø 75.00 |
20 mm |
S122-17 |
S123-04 |
| Consolidation |
Ø 79.80 |
20 mm |
S122-02 |
S123-02 |
| Consolidation |
Ø 112.80 |
25 mm |
S122-03 |
S123-03 |
| |
|
|
|
|
| Consolid.Permeab. |
Ø 50.47 |
20 mm |
S122-04 |
S123 |
| Consolid.Permeab. |
Ø 63.50 |
20 mm |
S122-20 |
S123-05 |
| Consolid.Permeab. |
Ø 71.40 |
20 mm |
S122-05 |
S123-01 |
| Consolid.Permeab. |
Ø 75.00 |
20 mm |
S122-18 |
S123-04 |
| Consolid.Permeab. |
Ø 79.80 |
20 mm |
S122-06 |
S123-02 |
| Consolid.Permeab. |
Ø 112.80 |
25 mm |
S122-07 |
S123-03 |
| |
|
|
|
|
| Shear |
Ø 50 |
23 mm |
S122-08 |
S123-08 |
| Shear |
Ø 60 |
23 mm |
S122-09 |
S123-09 |
| Shear |
Ø 63.5 |
23 mm |
S122-21 |
S123-17 |
| Shear |
Ø 100 |
23 mm |
S122-10 |
S123-10 |
| Shear |
❏ 60x60 |
23 mm |
S122-11 |
S123-11 |
| Shear |
❏ 100x100 |
23 mm |
S122-12 |
S123-12 |
| |
|
|
|
|
| Triaxial +Unconfi. |
Ø 38 |
76 mm |
S122-13 |
S123-13 |
| Triaxial |
Ø 50 |
100 mm |
S122-14 |
S123-14 |
| Triaxial |
Ø 70 |
140 mm |
S122-15 |
S123-15 |
| Triaxial |
Ø 100 |
200 mm |
S122-16 |
S123-16 |
Accesories:
V112-01 Porcelain Motor Ø 125 by 65 mm complete with porcelain pestle.
V113 Pestle, rubber headed.
S124 Wire Saw for trimming soil specimens. Complete with six blades.
S125 Trimming Knife to prepare samples.
