Standards: EN 13286-2, 13286-47, ASTM D698, D1587, D1883, BS 598, 1377:4, 1924:2

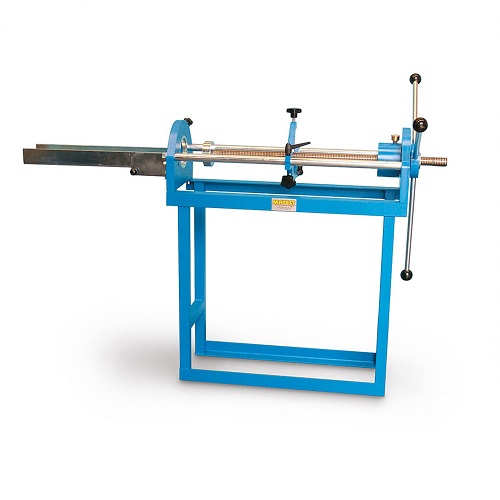

The unit extrudes samples from Ø 35 to 101.6 mm with max. stroke of 650 mm.
Supplied complete with adaptors to extrude samples having diameter 38.1 (11/2”), 83, 100 mm, supporting bench, sample receiving table both adjustable in height and lowerable.
Dimensions: 1700x700x1200 mm
Weight: 90 kg approx.
Adaptors:
| Code |
Diameter |
| S113-10 |
38,1 mm ( 1 ½”) |
| S113-11 |
50,8 mm (2”) |
| S113-12 |
76,2 mm (3”) |
| S113-13 |
101,6 mm (4”) |
| S113-14 |
83 mm |
| S113-15 |
100 mm |
| S113-16 |
35 mm |
| S113-17 |
150 mm |
