Hydraulic Shrinkage Determination
To measure the axial and/or superficial dimensional shrinkage of concrete specimens during hardening process in a curing room.
Standards: UNI 11307, UNI 6555 (comparable to ASTM C426)
The specimen is prepared by a mould having dimensions 100x100x500 mm, with aggregates up to 30 mm max. diameter, and after housed in the measuring apparatus that determines the axial shrinkage.
The two UNI Standards require two different systems to prepare the specimen:
- The UNI 11307 requires reference pins to be sticked on the specimen.
- The UNI 6555 requires inserts fixed into the mould and let into the specimen.
Equipment According to UNI 11307:
C254-01 Beam Mould
Steel made, to prepare a concrete specimen 100x100x500 mm
Weight: 23 kg approx
C366-12 Reference Pin
To be sticked in the intersection of the longitudinal axis of the specimen with its bases.
Pack of 10.
Equipment According to UNI 6555:
(comparable to ASTM C426):
C365 Shrinkage Mould
Steel made, complete with inserts, to prepare a concrete beam specimen 100x100x500 mm
Weight: 23 kg approx

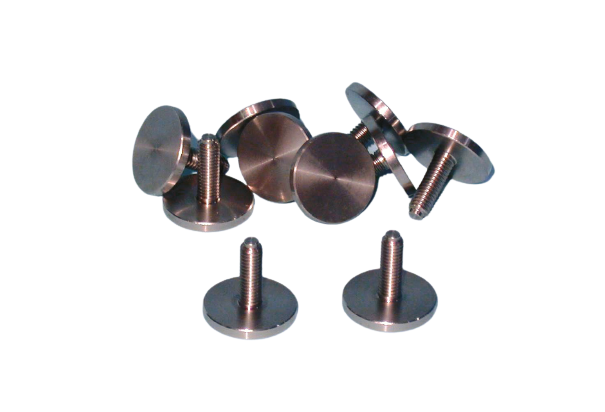

C366-11 Inserts
Stainless steel, spares to C365 mould.
Pack of 10
Needed Acessories, According to: UNI 11307 and UNI 6555
C364 Measuring Apparatus for 100x100x500 specimens, complete with reference bar, but without dial gauge to be ordered separately. Weight: 23 kg approx.

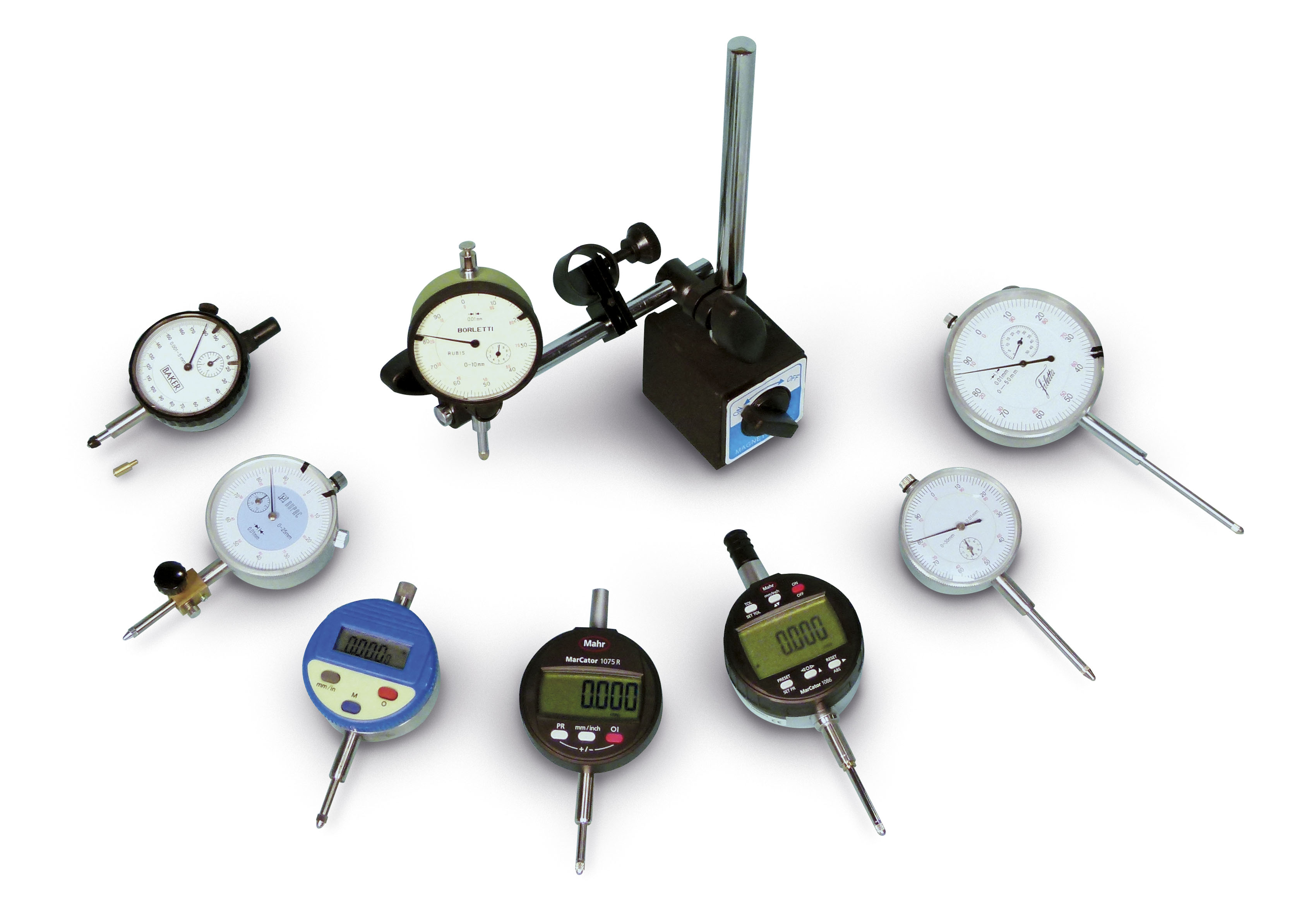

S375 Dial Gauge, 5 mm stroke by 0.001 mm sens.
As an alternative:
S376 Dial Gauge, 10 mm stroke by 0.01 mm sens
As an alternative:
S382-01 Digital Gauge indicator, with readings in mm (sens. 0.001 mm) and in inch (sens. 0.0001”), battery feeded.
Complete with battery and RS232 connector to PC.
S382-13 Cable to connect S382-01 and S383 to PC through USB port for direct visualization and recording of the measurement.
