Standards: EN 12390-2, ASTM C31, C192, AASHTO T23

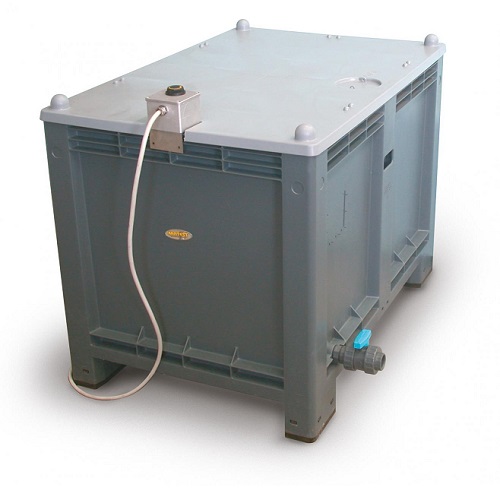

C302 KIT Curing Tank 650 liter Capacity Heavy Plastic
Made from extremely robust and stable polyethylene, complete with base rack.
Supplied without thermostat heating system, to be ordered separately.
Inside dimensions: 1040x1040x605 mm
Weight: 60 kg approx.
C302-10 KIT Curing Tank, 550 liter Capacity Heavy Plastic
Same to mod C302 KIT but having:
Water discharge cock incorporated into the tank
Inside dimensions: 1100x710x690 mm
Overall dimensions: 1200x80x850 mm
Weight: 55 kg approx.

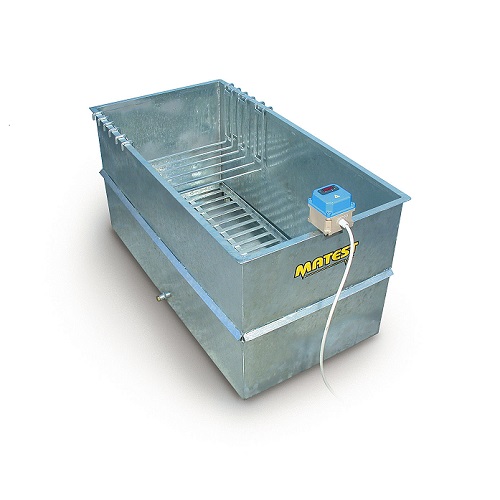

C304 Curing Tank, 1000 liter Capacity Heavy Plastic
Made from steel sheet, zinc coated to prevent it from corrosion.
Complete with base rack and stopper for an easy water discharge.
Supplied without thermostat heating system, to be ordered separately.
The tank can accommodate up to 64 cubes 150mm side, or up to 48 cubes 200mm side.
Inside dimensions: 1500x750x750 mm
Weight: 120 kg approx.
Needed Accessory

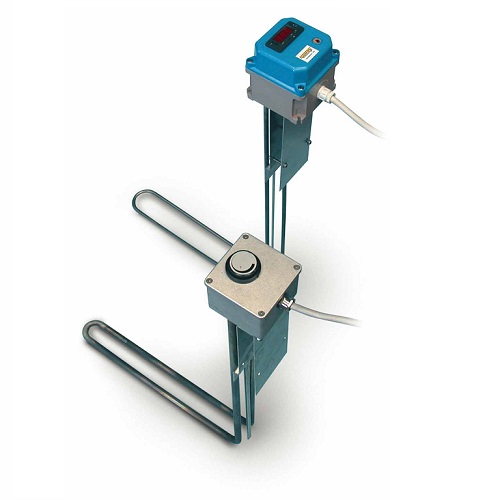

C302-01 Thermostat Analogic Heating System, for the tank mod. C302 KIT 230V 1ph 50-60Hz 2000W
C304-01 Thermostat Analogic Heating System, for the tanks mod. C302-10 KIT and C304 230V 1ph 50-60Hz 2000W
As an alternative:
C304-02 Thermostat Digital Heating System for the tanks mod. C304 C302-10 KIT and C302 KIT, ensuring better temperature accuracy 230V 1ph 50-60Hz 2000W
Accessories
C305-01 Plastic Cover for the C302 KIT tank
C302-11 Plastic Cover for the C302-10 KIT tank
C306-04 Steel Zinc Coated Cover for the C304 tank
C306-01 Upper Rack for the C304 tank to store cubes max.150 mm Max. 8 racks per tank
C306-02 Submersible Water Circulation Pump, also used for an easy water discharge from the tank 230V 1ph 50/60Hz
C306-03 Separate Control Panel, complete with switch and electric protections, to get the tanks to CE Safety Directive
