Standards: EN 12390-2, ASTM C31, C192, AASHTO T23, T126
Suitable for the internal compaction of concrete specimens both in laboratory and in site. The diameter of the needle must not exceed the 25% of the smallest dimension of the specimen. Different models available: electric, petrol, battery operated.
C271N Poker Vibrator, portable, petrol operated.
Honda motor, 4-stroke, 1.6HP, 35,8cc Tip dimensions: Ø 25 mm by 250 mm long.
Flexible shaft: 2 metres long.
Frequency: 10000 vibrations/min.
Supplied complete with knapsack.
Weight: 7 kg approx.

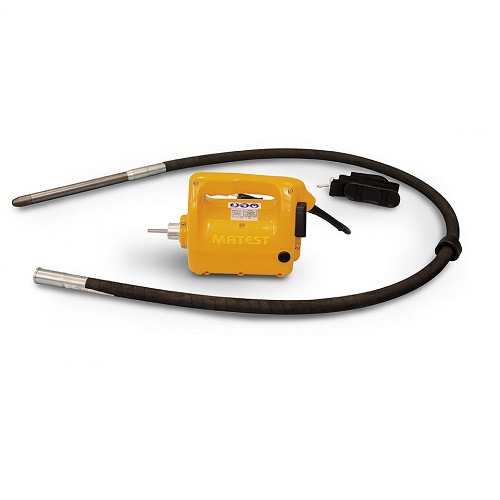

C272 Poker Vibrator, portable, electric.
Tip dimensions: Ø 25 mm by 290 mm long.
Flexible shaft 2 meters long.
Frequency: 12000 vibr./minute.
Amplitude: 0.65 mm
Centrifugal force: 0.8 kN (80 kg)
Power supply: 230V 1ph 50/60Hz 2300W
Dimensions: 180x350x220 mm approx.
Weight: 9 kg approx.

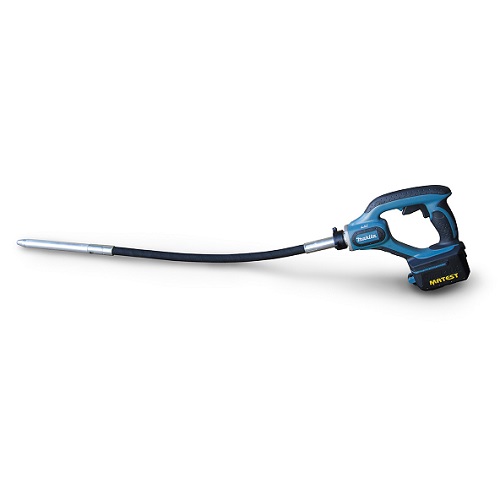

C274M-KIT Poker Vibrator, battery operated, original Makita,
Tip dimensions: Ø 25 mm by 250 mm long.
Flexible shaft: 800 mm long
Frequency: 13000 vibr./minute
Battery power: 18V 3.0Ah
Supplied complete with rechargeable battery and battery charger, original Makita.
Weight: 3 kg approx.
Accessories
C272-10 TIP, Ø 25 mm by 290 mm long, complete with flexible shaft 2 metres long, for the vibrator mod. C272.
C271-10N TIP, Ø 25 mm by 250 mm long, complete with flexible shaft 2 metres long, for the vibrator C271N.
