Standards: EN 12390-2, BS 1881:108

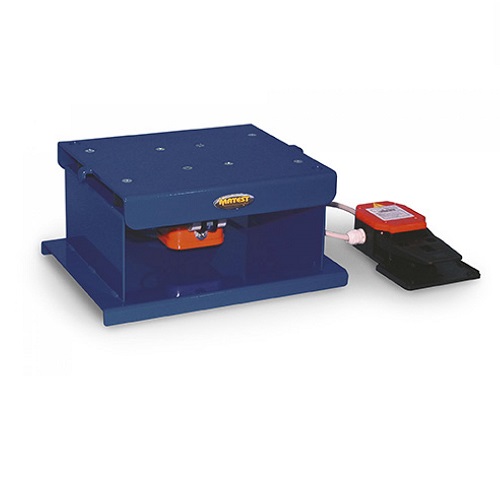

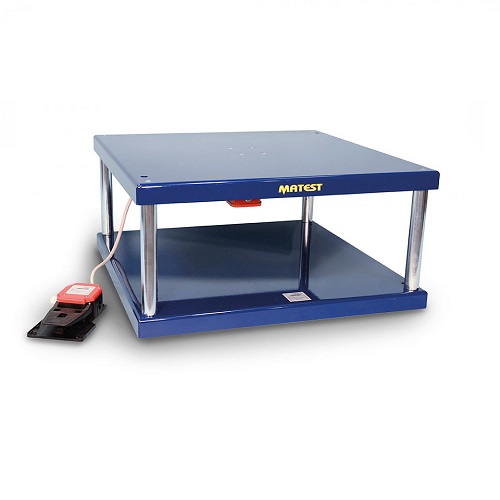

Used for the compaction of concrete specimens in laboratory, they are manufactured from rugged steel sheet. Equipped with motor-vibrator having 3000 vibrations-minute, it is possible to vary the vibration intensity by acting on the excentric masses. The height of the table is 410 mm. All the vibrating tables accept the clamping device, pedal swith or control panel.
Power supply: 230V 1ph 50Hz
| Models |
Table dimensions mm |
Power W |
Weight kg |
Clamping device |
| C278 |
600x400 |
180 |
60 |
C281-01 |
| C278-01 |
800x400 |
180 |
85 |
C281-02 |
| C278-02 |
800x800 |
180 |
115 |
C281-03 |
| C279 |
1100x550 |
180 |
145 |
C281-04 |
C281N Vibrating Table, Portable
12V DC Suitable for site use, where no electric supply is available.
Lightweight and small sized, it can be handled by one person and easily stored in the car trunk.
Supplied complete with On/Off switch and connector for the vehicle cigar lighter, and elastic bands to fix the mould to the table.
C282 Vibrating Table
Similar to mod. C281N, but for laboratory use
Power supply: 230V 1ph 50Hz 110W
Accessories
C279-04 Pedal Switch, water tight. It can be fixed to the table only as an alternative to the Control Panel mod. C279-02

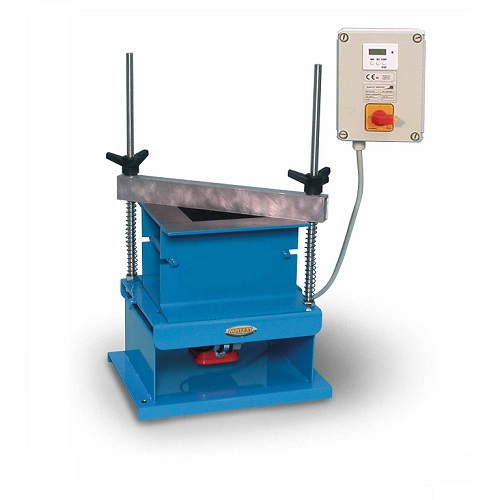

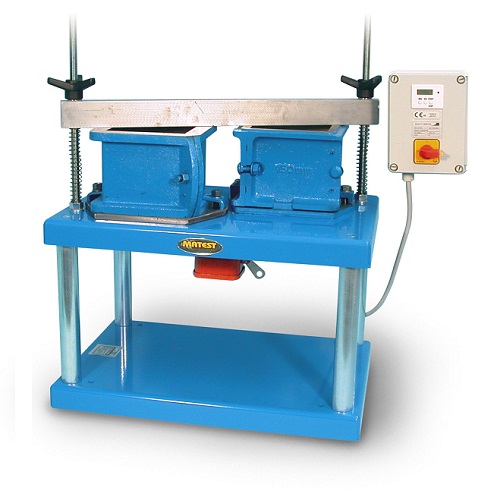

C279-02 Control Panel, separate, complete with On/Off switch and timer, getting also the tables to CE Safety Directive. It cannot be used with the table mod. C281N
C281-05 Clamping Device, to fix the mould to the table, suitable only for tables mod. C281N and C282. Alternative solution to the elastic bands. Recommended for the laboratory table C282
C279-01 Motor-Vibrator, additional, (only for table mod. C279) to obtain an unidirectional vibration and a vibrating power of 300 kg of mass.
