Used to cut concrete specimens and any type of construction material like blocks, tiles, pipes, rock cores etc.

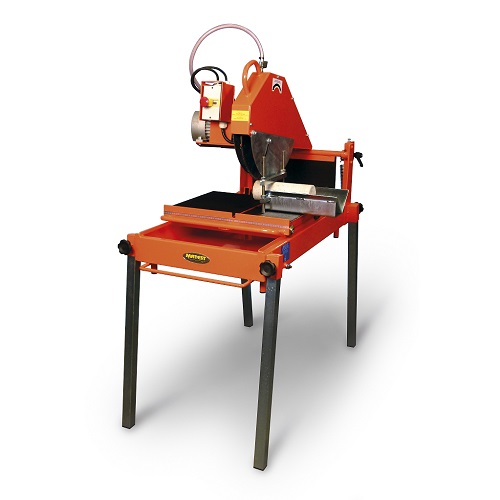

C348T
Specimen Cutting Machine
with sliding supports.
The machine accepts blades up to Ø 400 mm
Useful cutting height: 130 mm
Dimensions of the sliding table: 460x400 mm
Blade rotation speed: 2800 rpm
Supplied without blade (see accessories)
Power supply: 230V 1ph 50Hz 3Hp
Dimensions: 1185x660x1400 mm
Weight: 79 kg approx.
C350T
Specimen Cutting Machine
Used to cut concrete specimens and any type of construction material like blocks, tiles, pipes, rock cores etc.
The machine is equipped of an electro-pump for water cooling, pedal guide for vertical cutting, safety device against breakage of blade.
The machine accepts blades up to Ø 450 mm
Useful cutting height: 165 mm
Supplied without blade (see accessories)
Power supply: 400V 3ph 50Hz 4Hp
Dimensions: 1330x600x1370 mm
Weight: 128 kg approx.
C349T
Specimen Cutting Machine
Basically similar to mod. C350T, but it can accept blade having max. Ø 600 mm
Useful cutting height: 230 mm with blade Ø 600 mm
Power supply: 400V 3ph 50Hz 5.5Hp

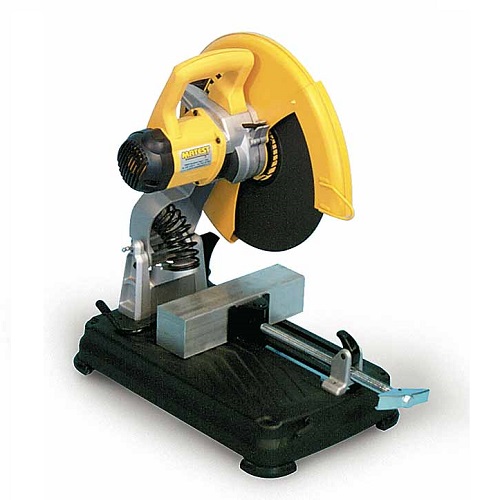

C351
Specimen Cutting Machine
The machine accepts blades up to Ø 350 mm
Useful cutting height: 120 mm
Blade rotation speed: 3900 rpm
Supplied complete with abrasive blade Ø 350 mm
Power supply: 230V 1ph 50Hz 2000W
Dimensions: 560x460x390 mm
Weight: 20 kg approx.
Accessories
C350-12 Diamond Blade Ø 450 mm, having long life for a faster and more precise cutting operation. Suitable for models C350T and C350-01T.
C350-13 Diamond Blade, Ø 350 mm for mod. C351
C350-14 Diamond Blade, Ø 400 mm for mod. C348T
C350-17 Diamond Blade, Ø 600 mm for mod. C349T
C350-10 Abrasive Blade Ø 350 mm for mod. C351
