Designed for making holes and getting cores from hard materials, like concrete, reinforced concrete, rocks, stones, bituminous materials.
The diamond utilized for these bits is quality impregnated sinterized type.
The diamond segment is 9 mm high.
The 9 mm high segment is important for the bit life, because the diamond is about 85% of the bit value.
The coupling between the bit and the motor shaft is direct through the backend screwed connector.
This diamond bit model is suitable to drill both reinforced concrete and also bituminous materials.
| Model |
Outside diameter mm |
Inside diameter mm |
Bit length mm |

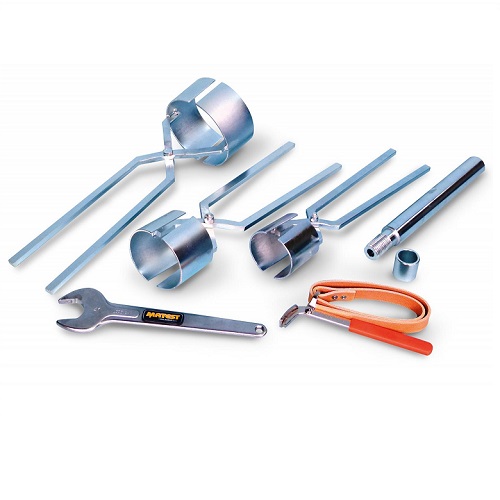

Core Extractor |
| C339-01 |
57 |
50 |
450 |
C346 |
| C339-02 |
82 |
75 |
450 |
C346-01 |
| C339-03 |
108 |
100 |
450 |
C346-02 |
| C339-04 |
160 |
152 |
450 |
C346-03 |
| C339-05 |
210 |
200 |
500 |
C346-04 |
