Standards: EN 12390-3, ASTM C617, C31, C192, AASHTO T23, T126, NF P18-416
Require that the two faces of the concrete core or cylinder specimen must be made perfectly flat and parallel, by using sulphur capping equipment.

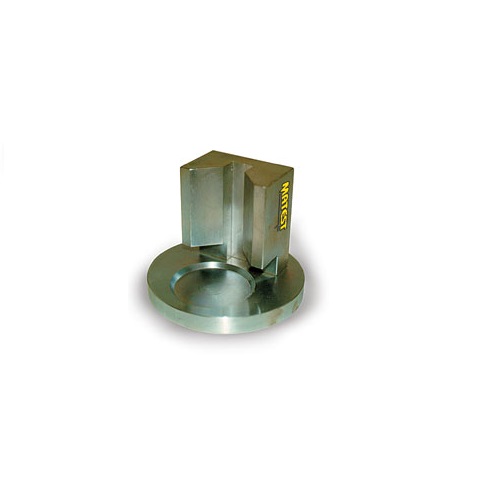

Cylinder Cappers
To obtain plane end surfaces perpendicular to the axis of the cylinder.
| Model |
Cylinder Ø x h |
Weight kg |
| C290-01 |
150x300 mm, 6”x12” |
6.3 |
| C291-01 |
160x320 mm |
6.2 |
| C292-01 |
100x200 mm |
4.4 |

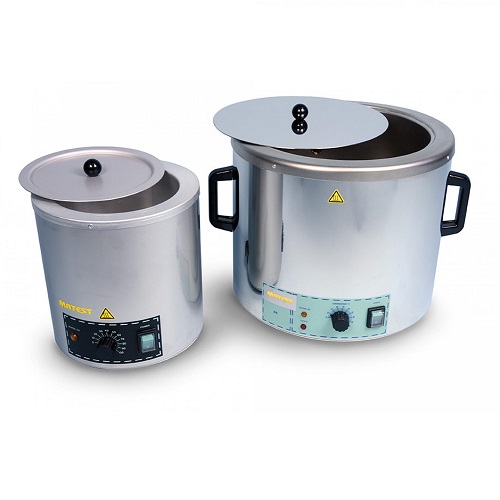

Melting Pot for capping compound.
Used to melt the sulphur capping compound.
Complete with thermoregulator.
Suitable also for general laborataory purposes.
C290-03 KIT
Melting Pot, capacity: 4 litres. Inexpensive model. 230V 1ph 50/60Hz 1500W
A106
Melting Pot, capacity: 5 litres Temperature range: +50 to +350 °C. accuracy: ± 1.5 °C. Complete with pilot lamp, fully isolated to CE Safety Directive. Internal dimensions: Ø 200x160 mm 230V 1ph 50-60Hz 800W. Weight: 3 kg approx.
C290-06
Capping Compound, ultra strong flake type. This compound is a mixture of sulphur and mineral filler; the compressive strength of 8000 - 9000 Psi is granted (at two hours) on a 2” cube specimen, as requested by ASTM C617 Standard. On a Ø 150 mm cylinder the compressive strength is 16000 Psi. Melting point is 115 to 143 °C. (ideal: 130 °C.) Bag of 22.5 kg (50 lbs).
Other Models
C294-01 Vertical Cylinder Capper for Ø 250x500 mm
C294-02 Cylinder Carrier for Ø 250x500 mm
C294-05 Vertical Cylinder Capper for Ø 60x120 mm
