The following equipment are suggested as alternative to the curing tanks and climatic chambers indicated in this catalogue or by necessity of a wide area for curing a big quantity of specimens.
They are suitable to prepare an already existing room/box or one to be realized by the customer.
The temperature of the room can be only increased compared to the external temperature but not decreased.
Needed Devices
C309-10 Control Panel of temperature and humidity. It is usually placed on the outer side of the room, and allows to set, display and control the desired parameters of temperature and humidity.
Power supply: 230V 1F 50-60Hz
Dimensions: 240x130x310 mm
Weight: 5 kg
C309-12 Heating Resistance in tubular frame, finned type. Normally one heating resistance is enough for its purpose, provided that the range between the external and internal temperature set in the room (anyway well insulated) is kept within 15 °C.
Dimensions: Ø 40x1100 mm
Weight: 2000 g approx.
C309-14 Sensor Probe to measure temperature and humidity. Temperature measuring range from -10 to +90 °C and humidity up to 100%. It is fixed inside the room and connected to the control panel.

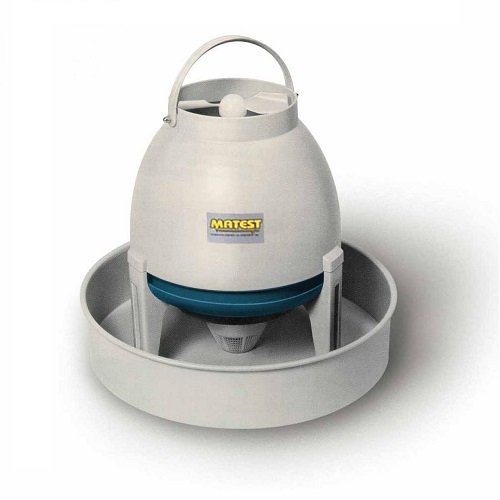

C311-01 Vaporiser Used to humidify curing rooms up to 150 cubic/metre.
