It is used for load cell calibration.
Standards: EN 12390-4, BS 1881:115, DIN 51302
This unit reads simultaneously the four values supplied by the electric strain load cell.
The values are memorized, automatically elaborated and visualized, to directly supply the various coefficients resulting by the calculations, and printed on laser printer (accessory C128) directly connected via USB to the tester.

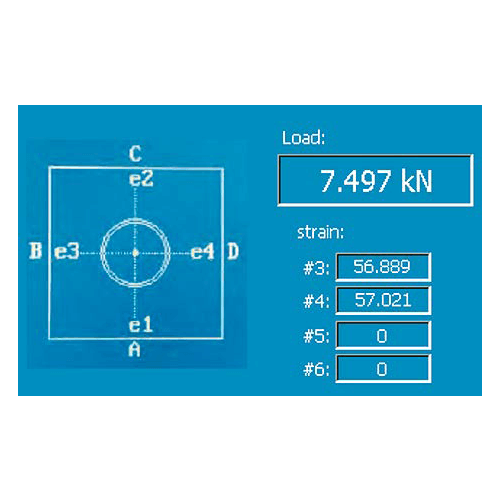

The unit, through the wide display, shows to the utilizer the different test procedures, as requested by previously selected specification (EN, BS, DIN).
At the end of the test, the display automatically visualizes the test results, by informing also if the frame under test is conforming to the requirements of the selected specification as regards the stability (axial transmission of the loads, self-alignment of the seat ball etc.).
The digital readout unit is also foreseen of a fifth digital reading channel allowing to perform load calibration tests on compression machines up to 3000 kN capacity.
Supplied complete with kit of 5 cables and connectors for load cell coupling, accessories, carrying case.
Power supply: 230V 1ph 50Hz
Dimensions: 450x350x160 mm
Weight: 8 kg approx.
