It is used for concrete static elastic modulus tests.

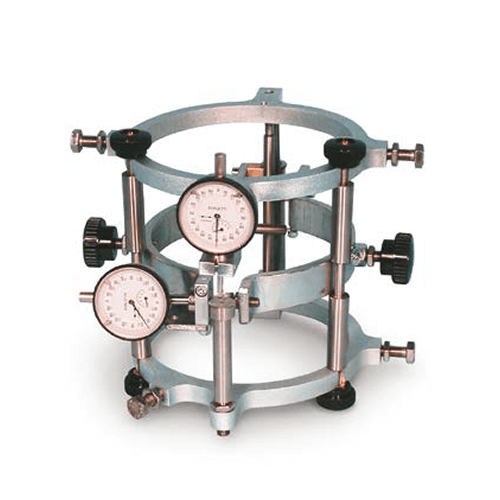

Compressometer
Used to determine the strain and deformation characteristics of concrete specimens. It comprises two steel rings for clamping to the specimen, two gauge length bars, and spherically-seated lever unit.
| Code |
Description |
| C130N |
COMPRESSOMETER for cylinders Ø 150x300 mm; Ø 160x320 mm; Ø 6”x12” |
| C131N1 |
COMPRESSOMETER for cylinders Ø 100x200 mm; Ø 112.8x220 mm; Ø 4”x8” |
| C132N |
COMPRESSOMETER for cubes 150 mm side. |
| C132-01N |
COMPRESSOMETER for cubes 200 mm side. |
Supplied without dial gauge or strain transducer to be ordered separately.
