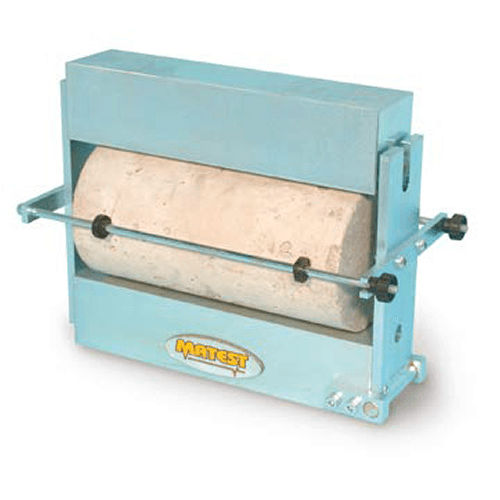

It is used for splitting tensile tests of concrete cylinder samples.
C100
It is used for splitting tensile tests of 150 x 300 mm, 160 x 320 mm, 6" x 12" cylinder samples.
Standards: EN 12390-6, ASTM C496, NF P18-408
Height mm: 280 mm
Weight: 20 kg
C101
It is used for splitting tensile tests of 100 x 200 mm, 110 x 220 mm, 4" x 8" cylinder samples.
Standards: EN 12390-6, ASTM C496, NF P18-408
Height mm: 220 mm
Weight: 12 kg
C102

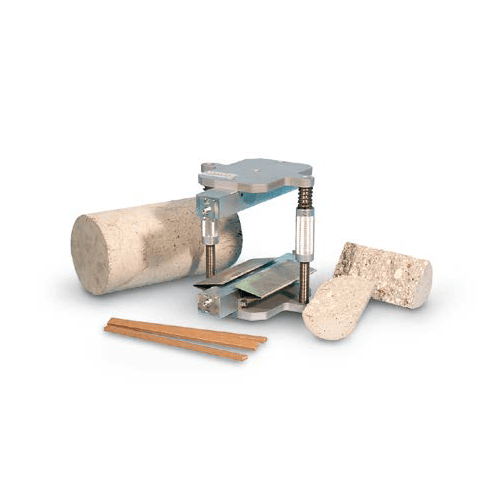

It is used for splitting tensile tests of 40 x 80 mm cylinder samples.
Standards: EN 12390-6, ASTM C496, NF P18-408
Height mm: 90 mm
Weight: 1 kg
