Standards: EN 12390-5, 12390-6, 14488-5, 1338, 1339, 1340, 196, ASTM C78, C293, C1550, C496, C349, UNI 9730-3
To perform a wide range of flexural/compression tests on concrete specimens, paving slabs, kerbs, mortar specimens, flexural toughness of steel FRC concrete, energy absorption of sprayed concrete, beam deflection and toughness of steel FRC/Shotcrete, measurement of crack opening (CTOD-CMOD).
Main Features
Servo-Plus evolution 8-channel servo controlled system for a fully automatic execution of the test.
Load is measured by a high accuracy electric strain cell, eliminating the piston’s weight and friction.

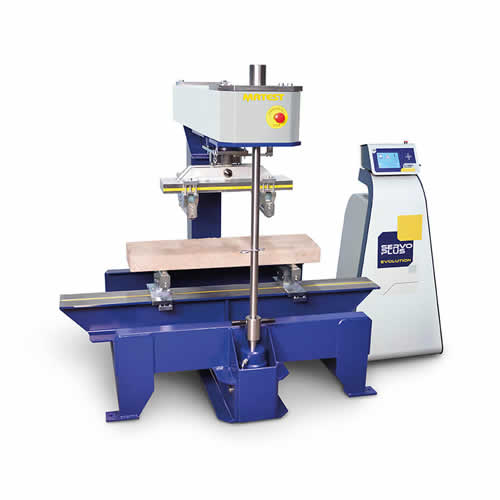

C-shaped open frame for an easy and fast positioning of the specimen between the rollers.
Frame is closed by a hydraulic vertical rod, granting high rigidity.
Ram travel: 110 mm
Maximum vertical daylight between upper/lower rollers: 263 mm
Horizontal clearance (between uprights): 1040 mm
Possibility to easily place one upper roller in the centre for centre-point loading.
Graduated scales are foreseen for easy roller adjustment. Simple action piston with counterweights to minimize frictions.
Calibration accuracy: class 1
Power supply: 230V 1ph 50Hz 750W
Frame dimensions: 1700x1470x1557 mm
Frame weight: 800 kg + 100 kg approx. of control console.
Combining with C109-09N, 1000kN capacity concrete piping tests can be executed.
