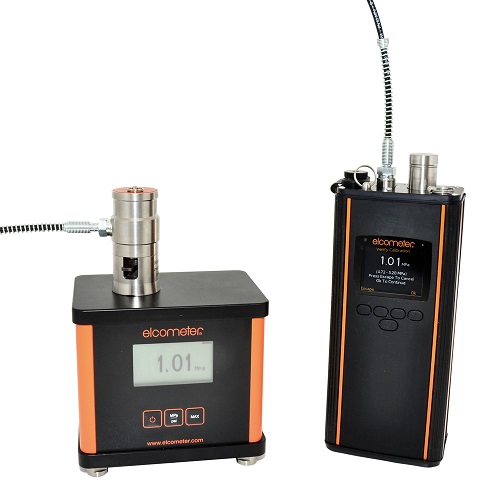

The Elcometer 510 Automatic Pull-Off Adhesion Gauge accurately measures the adhesion strength of coatings on a wide range of substrates.
- Using an automatic hydraulic pump, the Elcometer 510 Pull-Off Adhesion Tester ensures smooth and continuous pressure application for consistent and repeatable results.
- Whilst the rate of pull is controlled manually for most pull-off adhesion testers, the Elcometer 510 Pull-Off Adhesion Gauge allows the rate of pull to be selected, and the gauge applies the pre-selected rate automatically.
- The Elcometer 510 Pull-Off Adhesion Tester includes all the features that you have come to expect from an Elcometer designed and manufactured product, including ease of use, robust and ergonomic design, menu driven colour display, user selectable statistics and display modes.
- As well as reducing inspection times, the Elcometer 510 Pull-Off Adhesion Gauge can also speed up inspection reporting.
- Each live reading can be transferred via Bluetooth® to a PC, or mobile devices and, at the click of a button; users are able to generate professional reports.
Recording Pull-Off Force to National and International Standards:
- Many Standards require you to record the nature of the failure (either adhesive or cohesive) as an estimated percentage to the nearest 10%, as well the pull-off force.
- When the Elcometer 510 is set to Advanced Mode1, the nature of the fracture can be recorded digitally against the reading.
- You can also store any combination of two failures – whether it’s up to two adhesive failures (a failure at the interface between layers), two cohesive failures (a failure within the body of a coating layer, or the substrate when testing on concrete), or a combination of both adhesive and cohesive failures.
Key features of the Elcometer 510 Pull-Off Adhesion Gauge include:
Efficient
- Ideal for laboratory and field use

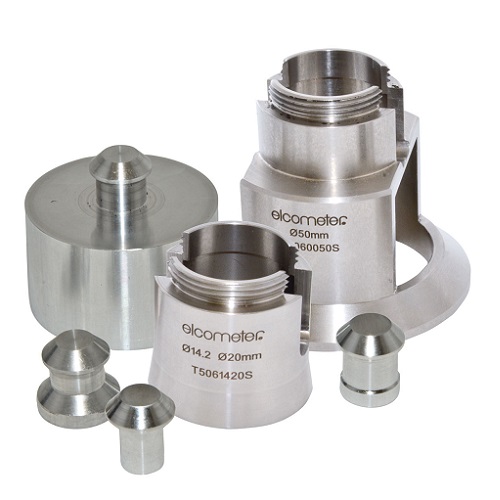

- 50mm (1.96”) diameter reusable dollies
- Range of substrate actuator skirts for thick, thin, flat or convex substrates
Powerful
- Smooth load application up to 100MPa (14,400psi)
- USB and Bluetooth® data output to iOS or Android™ devices
- Stores up to 60,000 readings in 2,500 batches
Durable
- Sealed, heavy duty and impact resistant
- Dust and waterproof equivalent to IP64
- Suitable for use in harsh environments
Accurate
- Fully adjustable pull rates 0.1-1.4MPa/s (14.5-203psi)
- Accuracy of ±1% of full scale
- Can be used in accordance with National & International Standards
- Interchangeable units: MPa, psi, Nmm2 and N
Reliable
- Repeatable and reproducible
- 2 year gauge warranty
- Batch date and time stamp facility
Easy

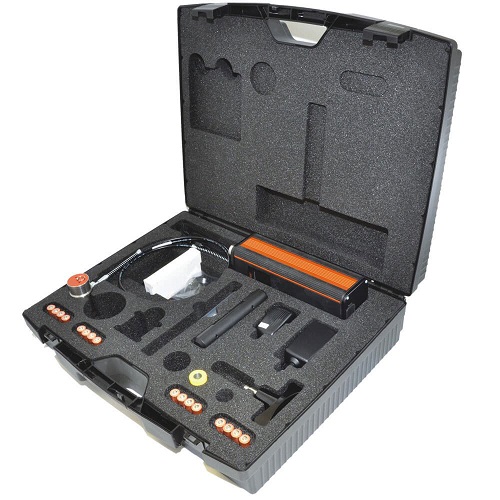

- Supplied in a robust plastic carry case for easy transportation
- USB and Bluetooth® data output to iPhone or Android™ devices
- Bright LCD colour screen
