This advanced ultrasonic measurement system provides precise, non-destructive monitoring of setting, hardening, and strength development processes in various construction materials such as cement-based mortars, plasters, screeds, gypsum products, and refractory materials.
Key Features:
Multi-Channel Capability: Equipped with 8 independently controlled channels for simultaneous measurements on multiple samples.
High Precision: Ultra-fine resolution of 0.05 microseconds ensures accurate tracking of material changes.

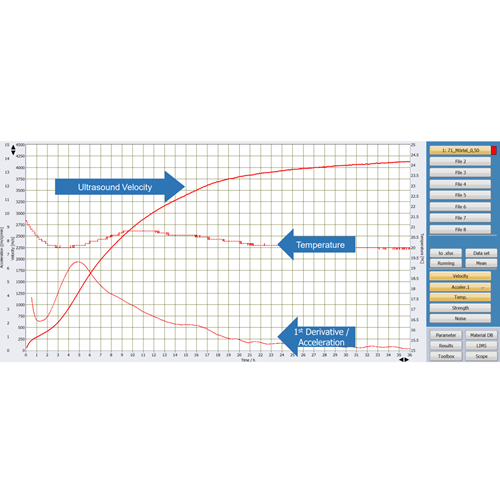

Real-Time Monitoring: Continuously measures ultrasonic pulse velocity to capture the entire setting and hardening process from mixing to final strength.

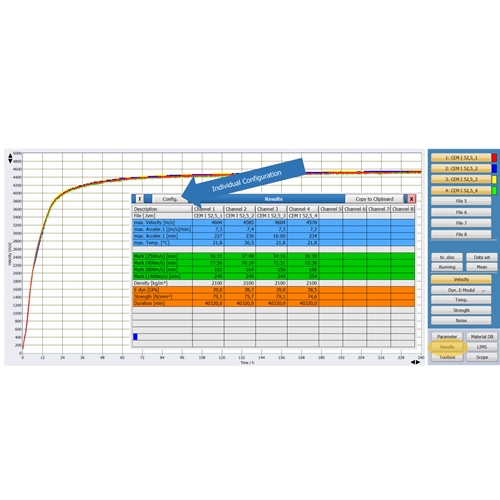

User-Friendly Software: Intuitive interface allows easy start, live data visualization, detailed analysis, and export options.
Non-Destructive Testing: Uses ultrasonic waves to assess internal material properties without damaging samples.
Versatile Applications: Suitable for research, development, production control, and quality assurance in mortar, concrete, plaster, adhesives, and refractory industries.

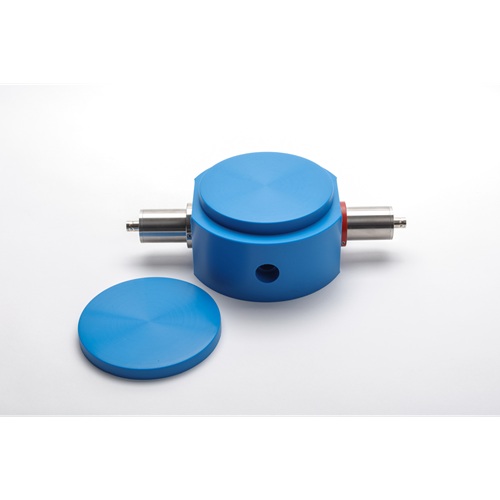

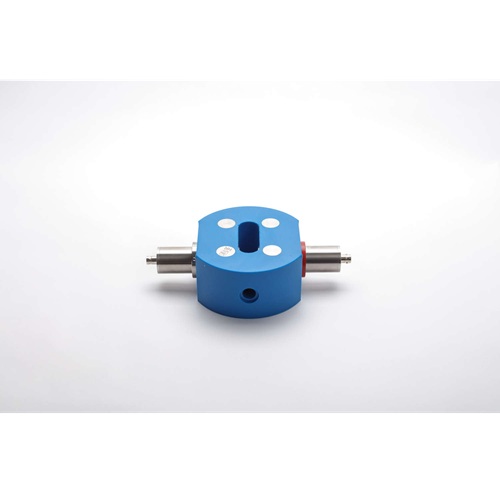

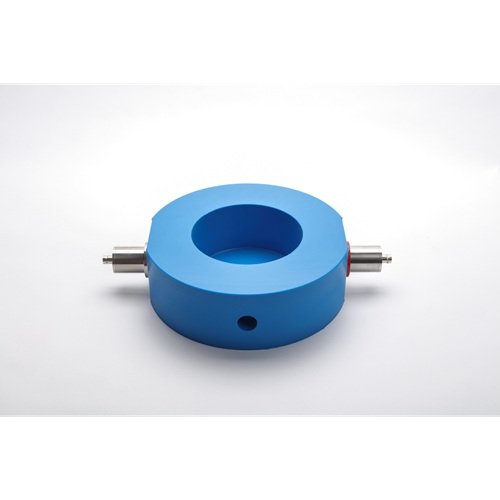

Durable Design: Features silicone molds for easy sample handling and robust stainless steel transducers.
Climate Chamber Compatibility: Supports measurements in controlled environments ranging from 0 °C to 80 °C.
Benefits:
Provides continuous, detailed data beyond traditional penetration tests.
Enables early detection of deviations in material formulation and quality.
Accelerates product development and improves quality control efficiency.
Reduces testing time and costs by offering reliable, automated measurements.
Ideal For:
Construction material manufacturers and laboratories
Research and development teams
Quality assurance departments
Academic and industrial research centers
This ultrasonic measurement system is an essential tool for accurately monitoring and optimizing the setting and strength development of construction materials, helping you ensure superior product quality and performance.
