There are 2 different models:

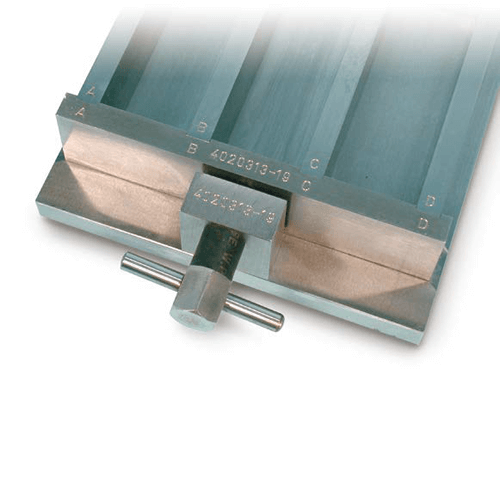

E075
Three Gang Prism Cement Mould
Standards: EN 12617-4, ASTM C438, NF P15-433
Used for the determination of linear shrinkage of cement mortar.
Manufactured from steel with hardness over 200 HV.
All surfaces are grinded and all parts are marked with an identification number for a correct assembling.
A part-number is engraved on each mould and a Certificate of Conformity is supplied along with.
Complete with 6 steel inserts and fixing screws.
Weight: 8.6 kg approx.

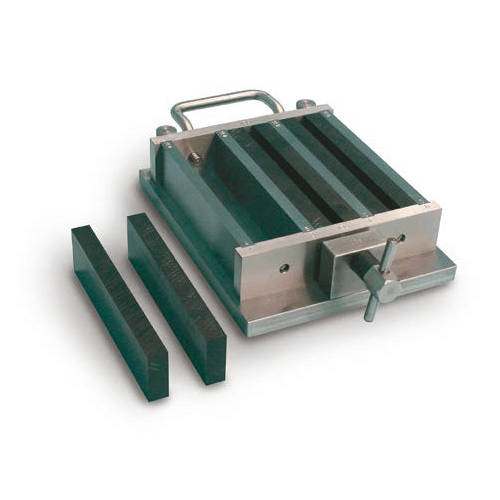

E103
Three Gang Prism Cement Mould
Standards: EN 196-1, EN ISO 679
Manufactured from heavy duty steel with hardness of inside walls over HV 500 (Conforms to EN196-1 specifications).
This high hardness value keeps the mould within the tolerances requested by Spec. for many tests, granting very long utilisation life.
All parts are marked with an identification number for a correct assembling.
Each mould is individually verified in the dimensional tolerances, hardness, squareness, flatness and roughness with instruments periodically certified by Namas Centre or equivalent.
A part-number is engraved on each mould, and a Certificate of Conformity is supplied along with.
Weight: 8560 g.
