The device produces water with suitable heating and cooling elements at controlled temperature of 20 °C ± 0.5 °C.
The water is forced into the tank E043 and then back to the bath allowing to perform the test at controlled temperature and humidity as requested by EN196-3 Standard.
The system accepts ONE or TWO Vicatronic.
Water capacity: 7.5 litres approx.
Optimized temperature range: 15 to 25 °C
Accuracy: ± 0.5 °C
Power supply: 230V 1ph 50-60Hz 350W
Dimensions: 415x300x420 mm approx.
Weight: 20 kg approx.

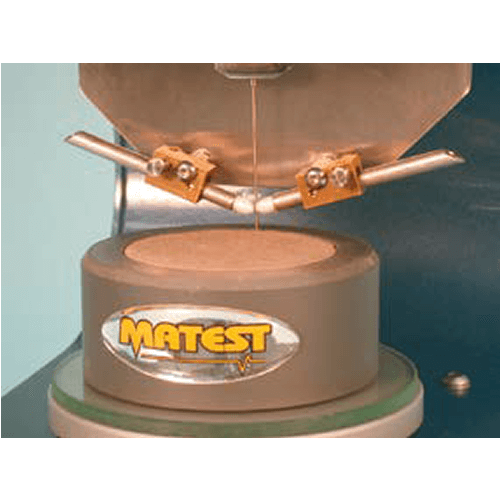

Needle Cleaning Device (E044-30)
It removes the residual cement particles from the needle keeping it constantly lubricated.
