The T600 tiltmeter is a single or dual-axis, mems-based sensor that can be used in both short-term testing and long-term monitoring applications.
With over- damping in the sensing element, they are less sensitive to vibration making them more suitable for higher frequency responses.

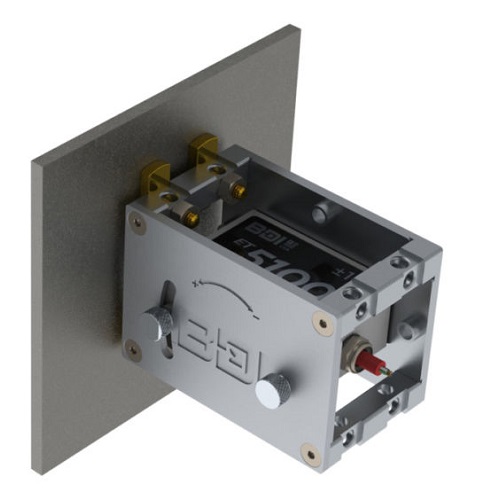

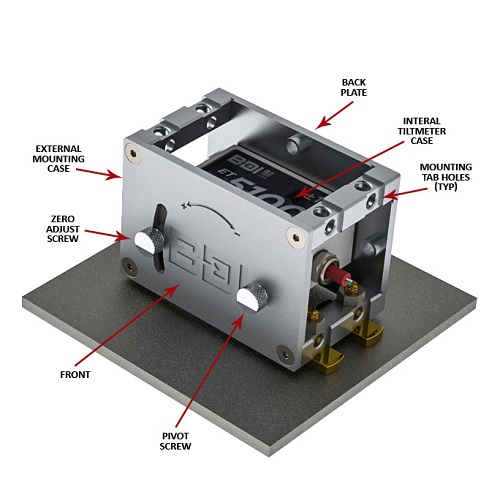

The rugged anodized aluminum housing protects against the harshest environments while providing simple mounting options and mechanical offset adjustment.
Features
Simple & quick range adjustment
Mounting tabs for adhesive application
Measurement range from ±15° to ±30°
4 mounting configurations
Designed to exceed IP67
Frequency response (-3 dB 18 Hz)
Excellent temperature stability
0.001° resolution (10 Hz bandwidth)
Applications
Long term structural monitoring
Tower rotation
Tainter gate position
Pier rotation
Permanent deformation monitoring
Building rotation
| MODEL |
T611-15 |
T611-030 |
T621-15 |
T621-30 |
| TYPE |
Uniaxial |
Uniaxial |
Biaxial |
Biaxial |
| LINEAR RANGE (ARC DEGREES) |
±15 |
±30 |
±15 |
±30 |
| OUTPUT (mV/ARC DEGREES typical) |
– |
– |
420 |
160 |
| RESOLUTION (ARC DEGREES) |
0.013 |
0.013 |
0.013 |
0.013 |
| CROSS-AXIS SENSITIVITY (MAX %) |
4 |
4 |
4 |
4 |
| NONLINEARITY (%FS) |
0.057 |
0.011 |
0.057 |
0.011 |
| FREQUENCY RESPONSE |
DC to 5 Hz |
|
|
|
| SETTLEMENT TIME |
400ms |
|
|
|
| EXCITATION VOLTAGE |
9-28 Vdc |
|
|
|
| RATIOMETRIC ERROR (%) |
±1 |
±1 |
±1 |
±1 |
| POWER RATING |
±1 |
±1 |
±1 |
±1 |
| MAX: |
|
|
|
|
| TYPICAL: |
|
|
|
|
| INTELLIDUCER1: |
|
|
|
|
| OUTPUT |
±2Vdc |
|
|
|
| OPERATING TEMPERATURE |
-40 °F to 176 °F (-40 °C to 80 °C) |
|
|
|
| TEMPERATURE SENSITIVITY |
|
|
|
|
| -25°C TO +80°C (TYPICAL, %/°C) |
±0.013 |
|
|
|
| -40°C TO +125°C (MAX, %) |
-2.5 … +1 |
|
|
|
| CABLE |
Custom lead cable length made to order: |
| IC-02-187 [22 AWG, 2 shielded pair, drain wire, red PVC jacket] |
| IC-02-250 [22 AWG, 2 shielded pair, drain wire, blue PVC jacket] |
| IC-03-250 [24 AWG, 3 shielded pair, drain wire, black PVC jacket] |
| HOUSING |
Machined 6061-Aluminum |
| CORROSION PROTECTION |
Hard Anodized Clear (MIL-A-8625 Type III) |
| WEATHER PROOFING |
Designed to exceed IP67 |
| DIMENSIONS |
4.25 x 2.6 x 3 in (108 x 66 x 76 mm) |
| WEIGHT |
1.2 lb (544 gr) |
| MOUNTING |
Through holes for ¼ in (M6) bolts or anchors on five sides |
| |
Reusable mounting tabs (gluing/welding) |
